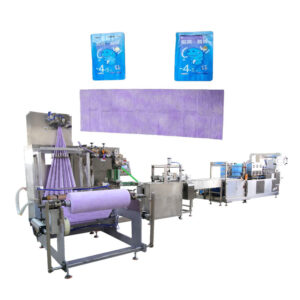

This machine is designed for wet wipes packaging and it adopts vertical folding. It is an institution, fast speed, smooth operation and can automatically accomplish: wet wipes folding→inside and outside liquid→slice, add bag making→sealing- +count→a batch number→products output and so on many features, effectively avoid the wet wipes in the packaging process of secondary pollution. the machine is compact and easy, safe. It suitable for packing 2-20 pieces of wet wipes for 1 packet.
| Model | JBK-320 |
|---|---|
| Wet Wipes Material | Air-laid Paper, Spunlace Nonwoven Fabric, Wet Strength Paper 30-100gsm |
| Packing Material | PE+PET composite Plastic Film,OPP Film,Aluminum Laminated Film, Pure Aluminum Film, and other composite films |
| Packing Material Size | Plastic film Roller Width 100-300mm |
| Packing Speed | 350-500pcs/minute |
| Packing Height | 1-60mm |
| Packing Length | 100-220mm |
| Packing Width | 30-110mm |
| Function | With Printing Code, Labeling, and Punching Hole |
| Exhaust | With Exhaust |
| Power | 220V 7.5kw |
| Overall Dimension | 5810x2410x2055mm |
| Weight | 1800kgs |
1). 12 Servo Motor control, flexible bag length cutting. Save time and film.
2). 7 inch touch screen, easy operation and multiple language for choice.
3). Smart PLC system, machine performance is stable, convenient for change parameter
4). Self diagnosis failure function, machine error can be clearly displayed in the touch screen.
5). Separate PID temperature controller, suitable for various packing materials
6). High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7). Position stop function, no adhesive and no waste of membrane and protect cutter.
8). Simple driving system, stable performance and convenient maintenance.
9). According to different product, the input conveyor can use pusher, belt or film for transportation.
10). High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.
