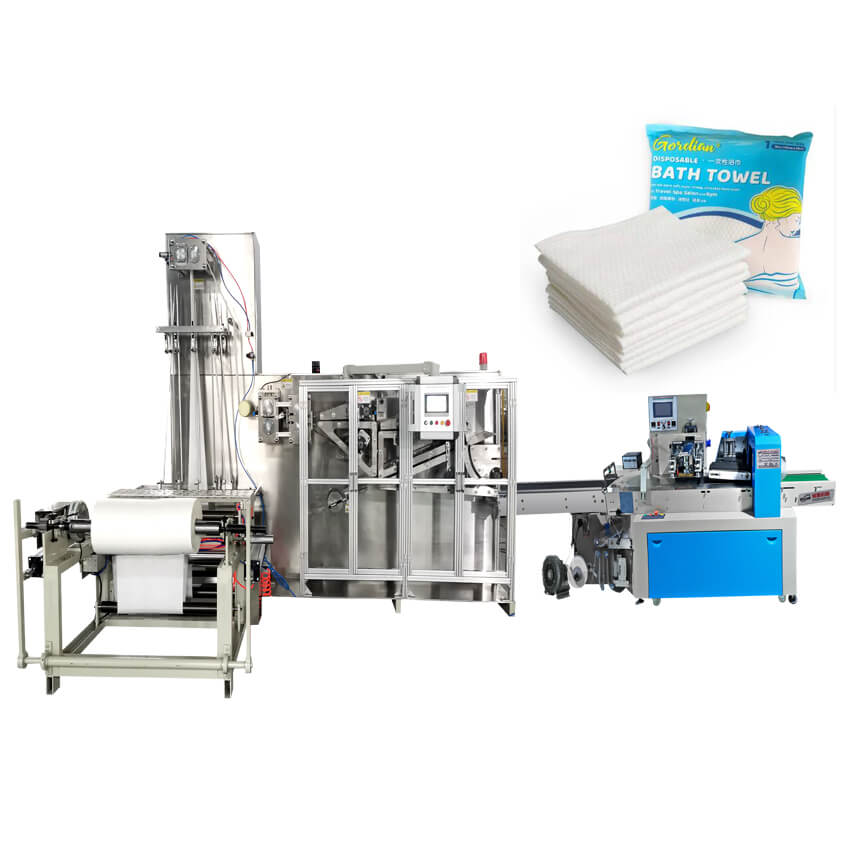

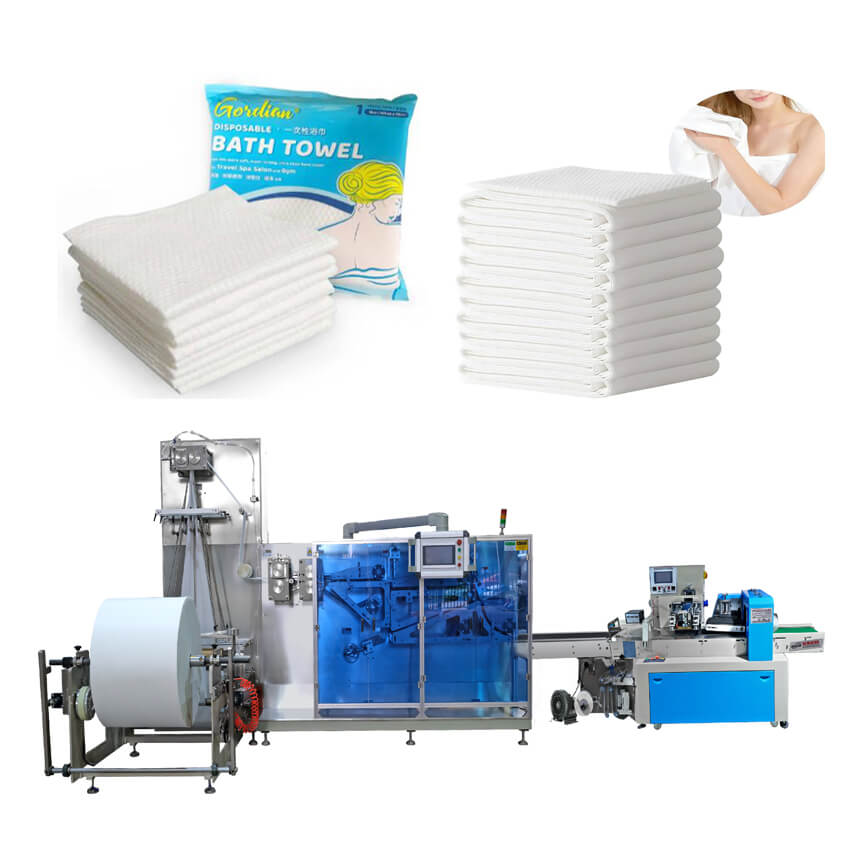

It is a fully automated solution specially developed for converting and packaging disposable bath towels, compressed towels, and large-size nonwoven hygiene products.
Fully Automatic Production Process

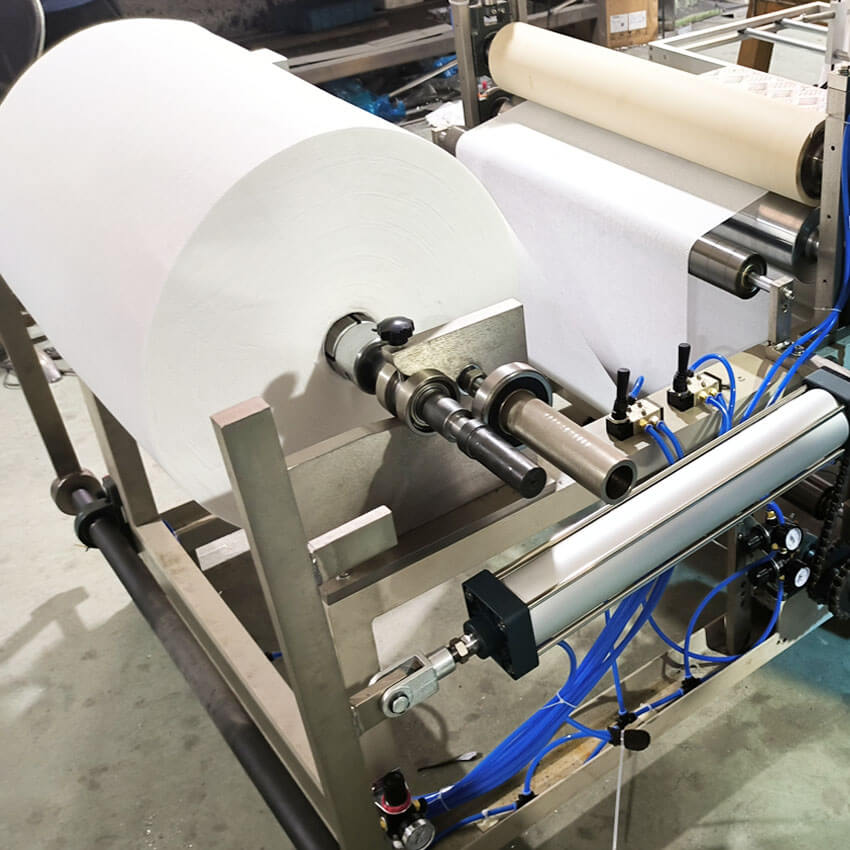

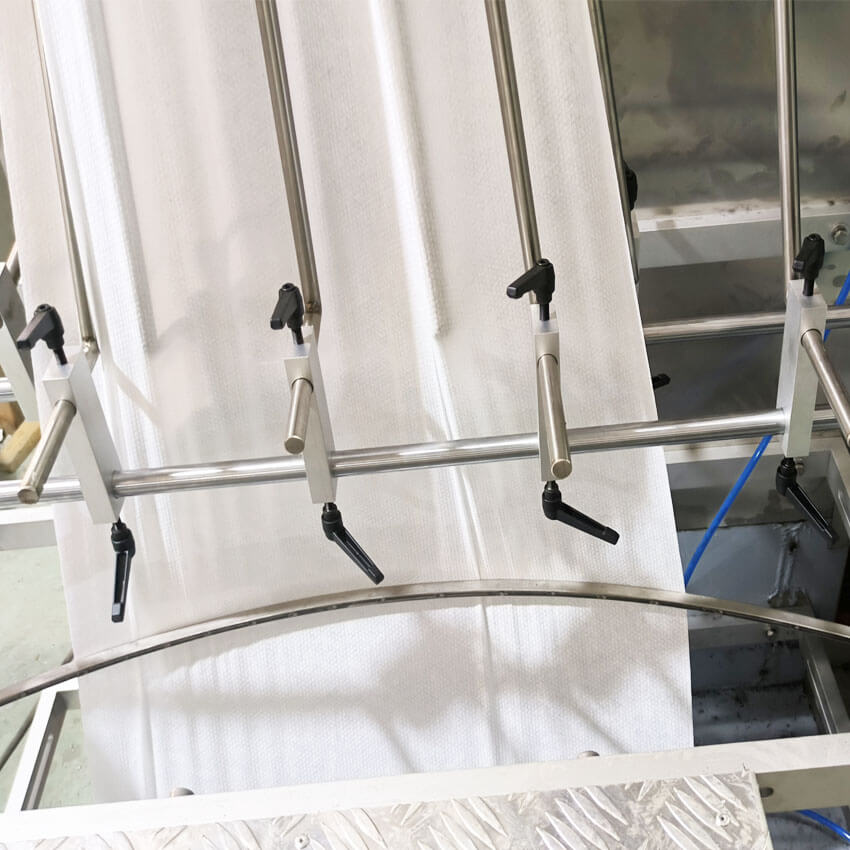

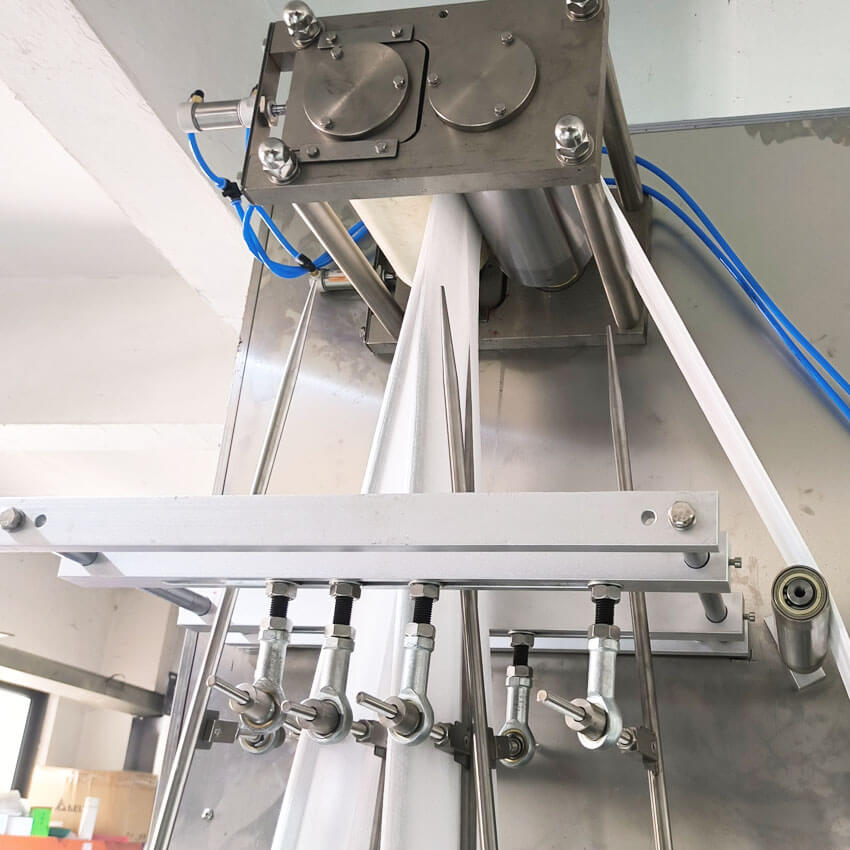

Raw Material Unwinding→ Automatic Conveying→ Longitudinal Folding→ Synchronous Conveying→ Fixed-Length Positioning Cutting

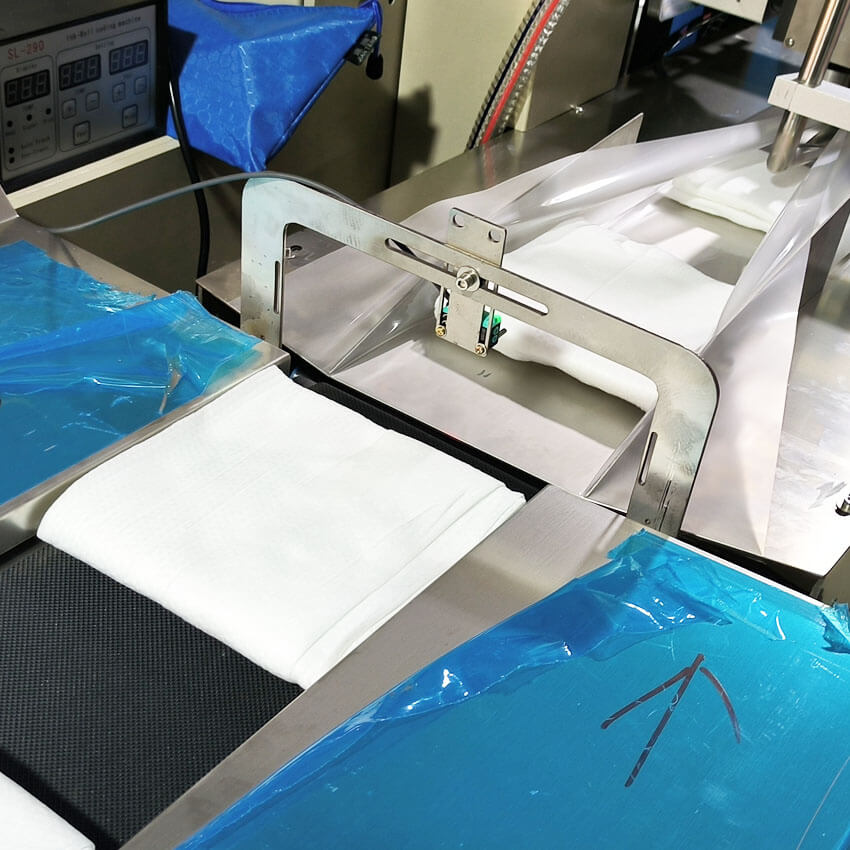

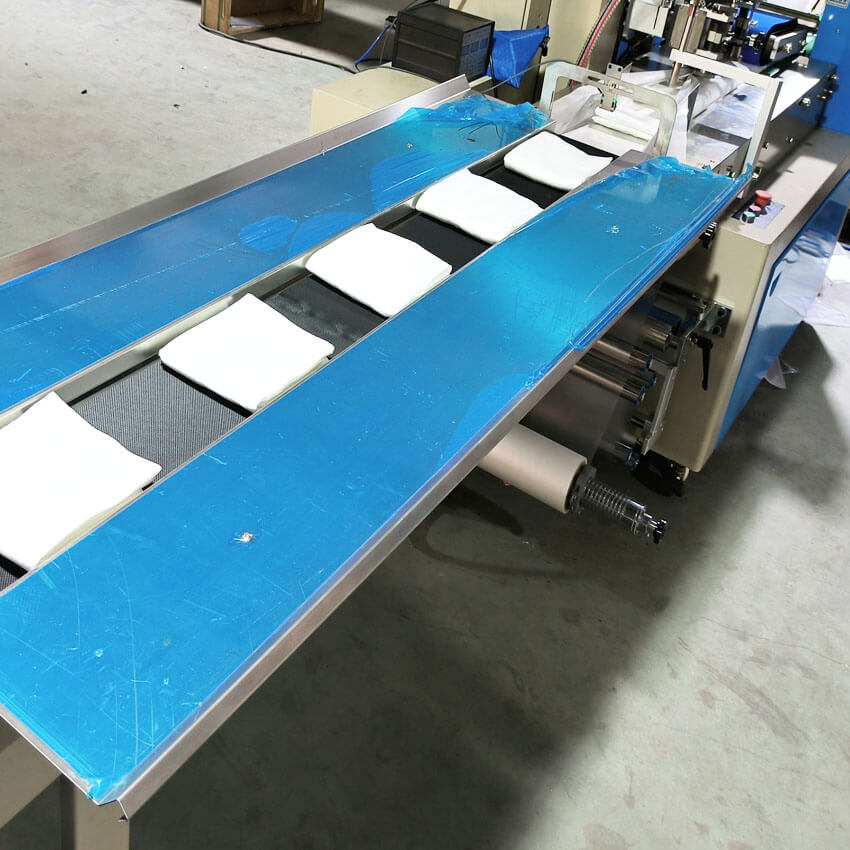

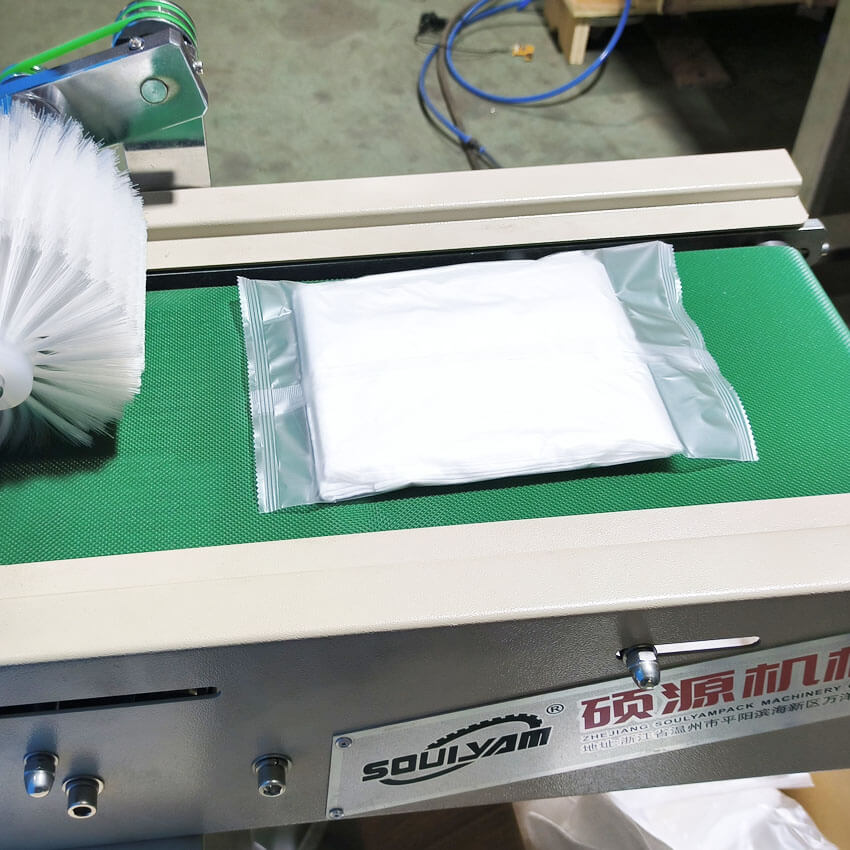

→ Transverse Folding→ Finished Product Conveying→ Automatic Packaging (optional integration)
| Model | JBK-1000 |
|---|---|
| Packing Speed | 40-90pcs/minute |
| The Width of Fabric Roll | 200-850 (mm) |
| Raw Material: | SpunlaceNon-wovenFabric,Polyester-woodpulp,PP-woodpulp,orviscosewoodpulp40-200gsm |
| Max Unfolding Size | 1600x800mm(other size could be customization) |
| Min Unfolding Size | 200x200mm(other size could be customization) |
| Packing Material | CPP Matte Film（0.05-0.06mm）,BOPP/PE, CPP/PE, CPP/PA, BOPP, CPP Anti-Fog Film, OPP Film, Color Film, and so on. |
| Folding Size | Length150-400mm Width:100-200mm |
| Overall Dimension | 7100x2750x2560mm |
| Max Packing Size | 300x200x50mm |
| Min Packing Size | 150x100x10mm |
| Power | 380v 8kw |
| Weight | 2000kgs |
Features:
1) Continuous Non-Stop Production
The machine adopts a continuous automatic converting system, allowing uninterrupted production to achieve:

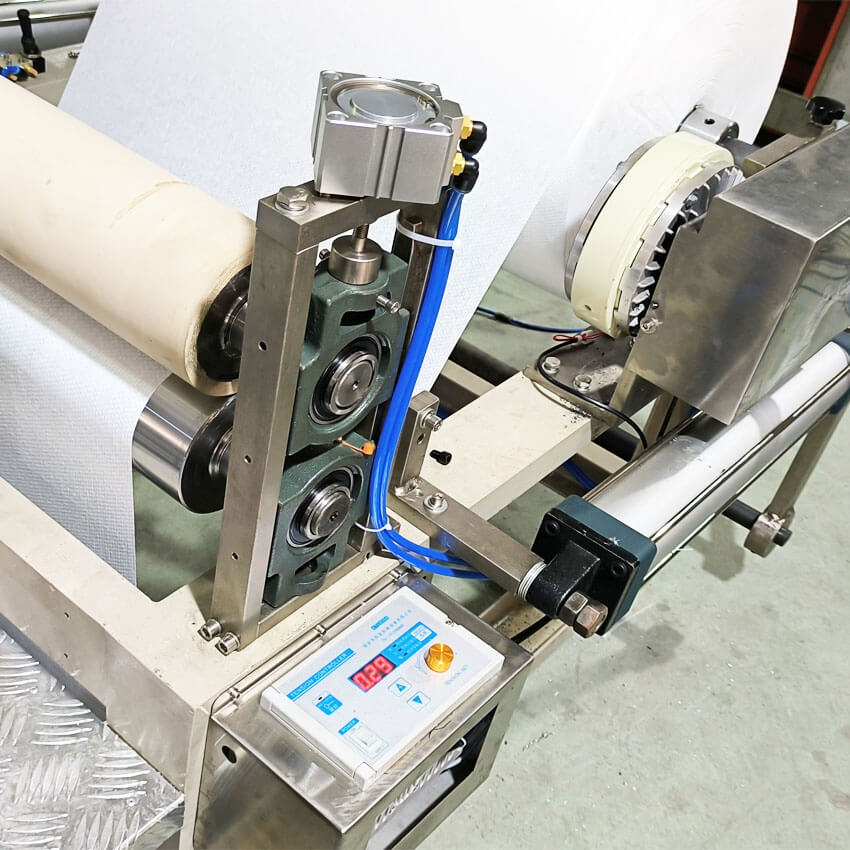

2) Precision Tension Control System

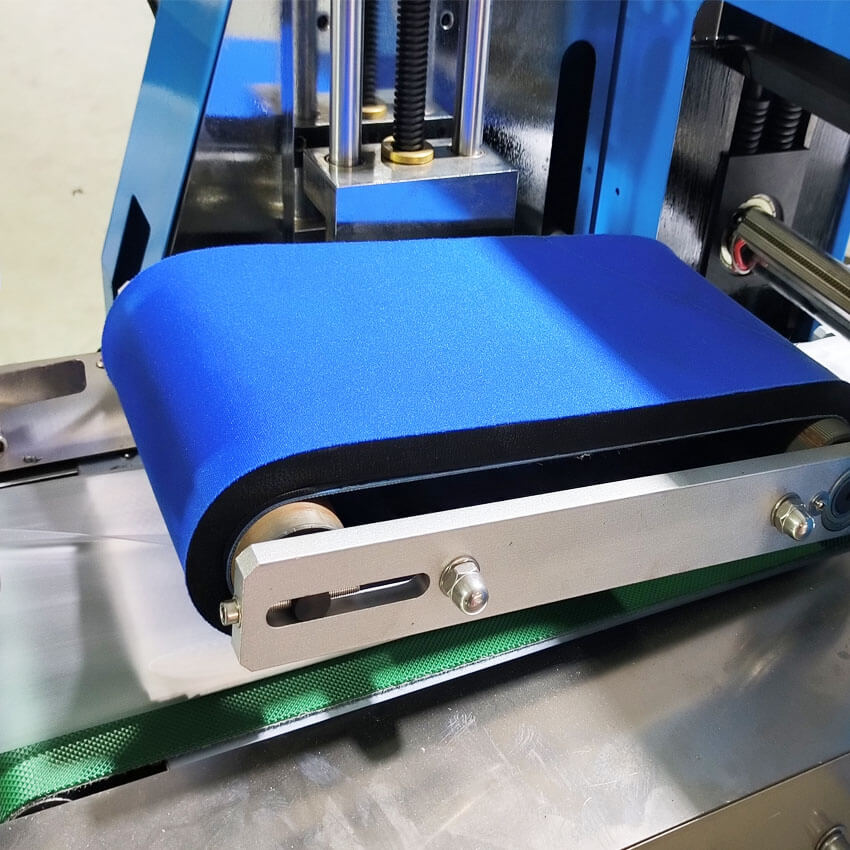

Equipped with:✔ Synchronous conveying system✔ Magnetic powder tension controller
3) Innovative Multi-Function Folding Technology
One machine can handle multiple disposable towel formats.

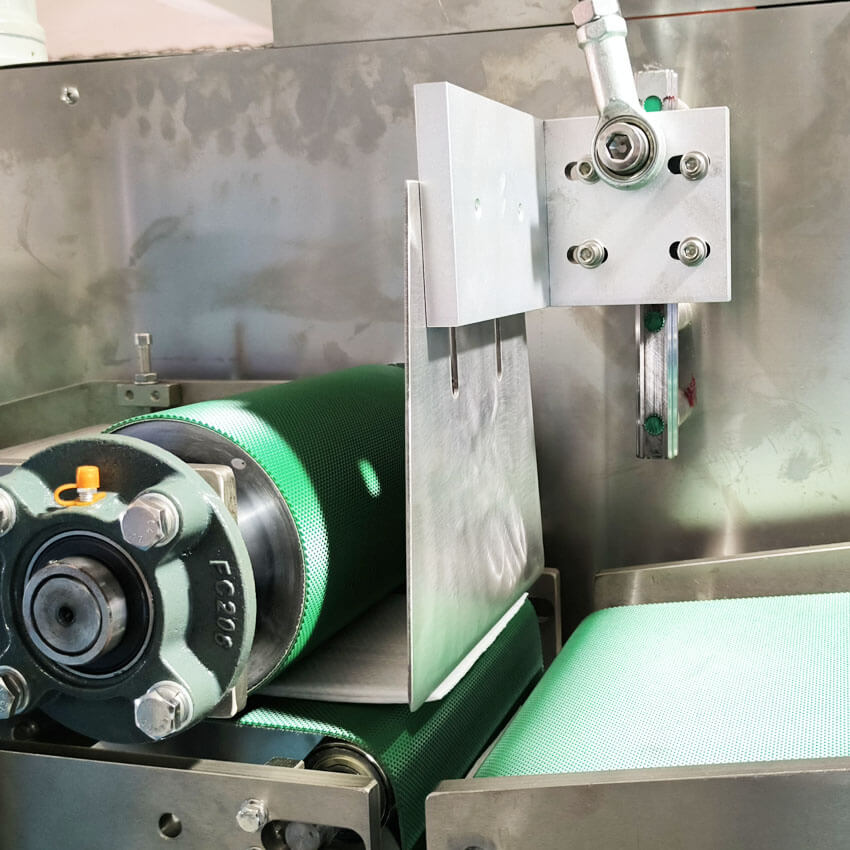

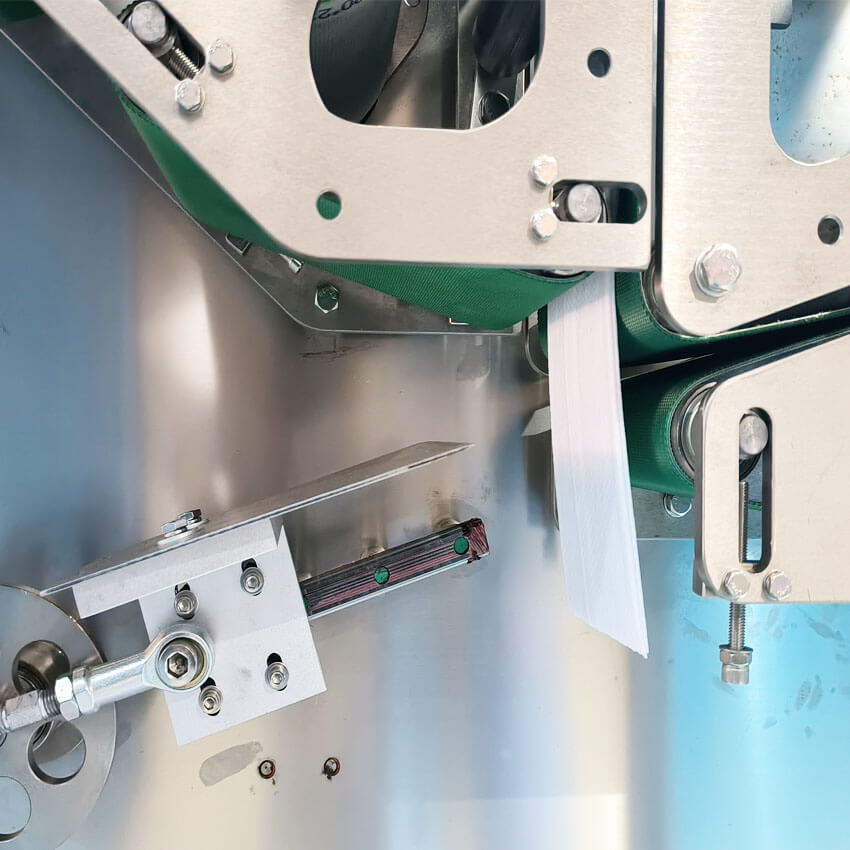

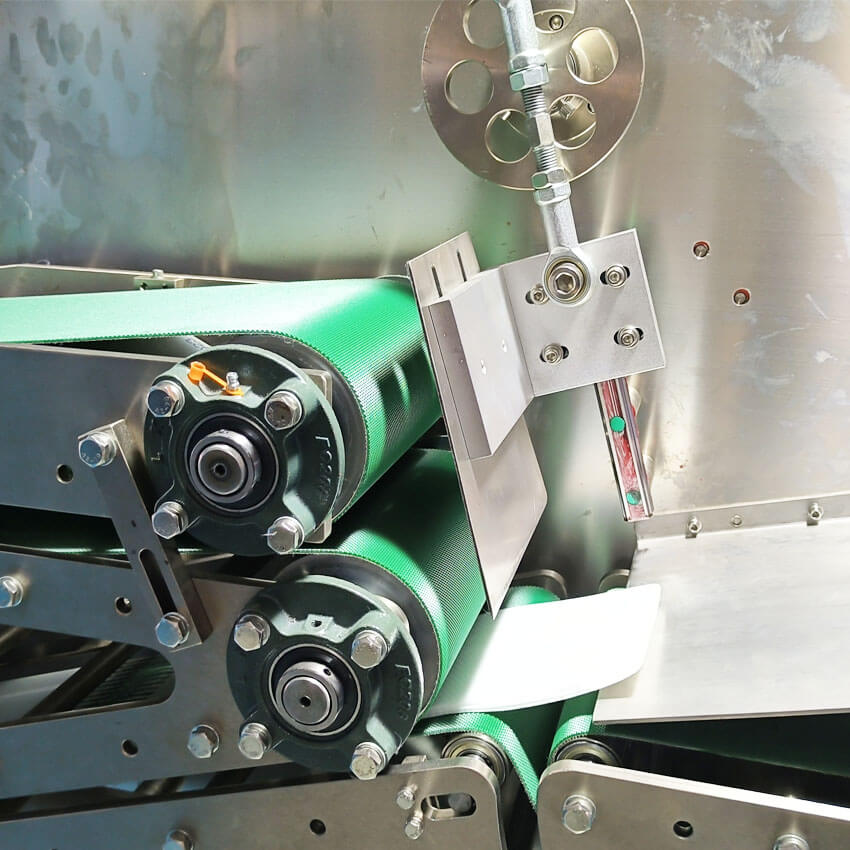

4) Servo-Controlled Cross Folding System
Adopts a servo-driven sliding cross-folding mechanism, providing:
Supports up to 3 transverse folds, suitable for different towel sizes and package dimensions.
5) High-Precision Servo Cutting
6) Intelligent PLC + Servo Automation
7) Compact Structure with High Output
Applications
Suitable for producing:
✔ Disposable bath towels✔ Disposable face towels✔ Spa towels✔ Hotel guest towels✔ Compressed towels✔ Beauty salon towels
✔ Travel towels✔ Large-size hygiene wipes
