Production Process

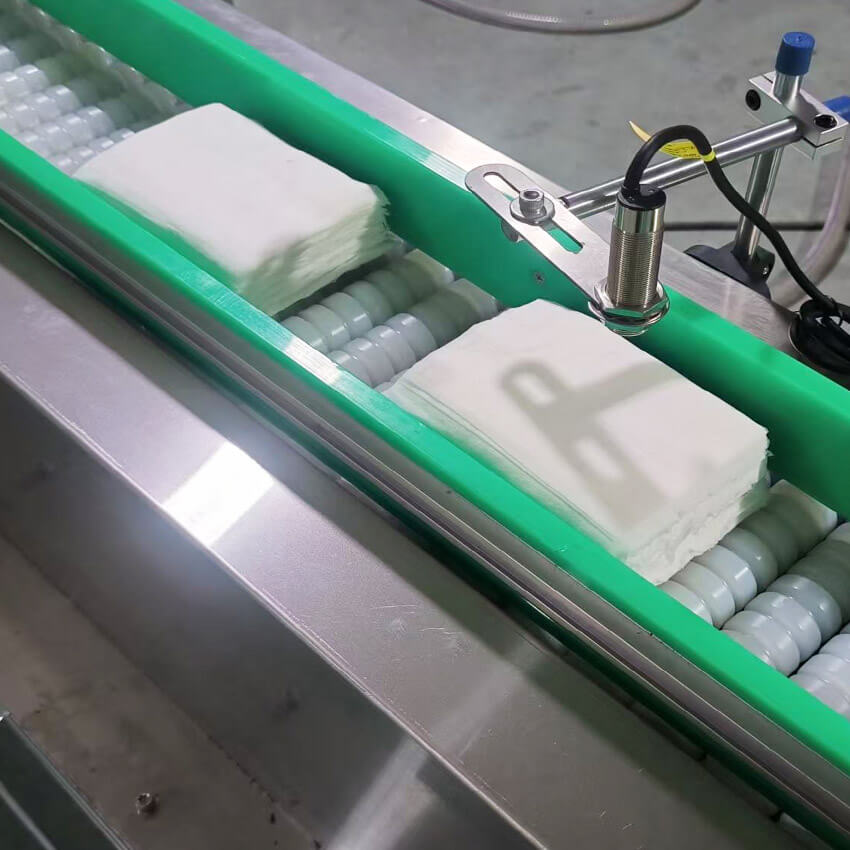

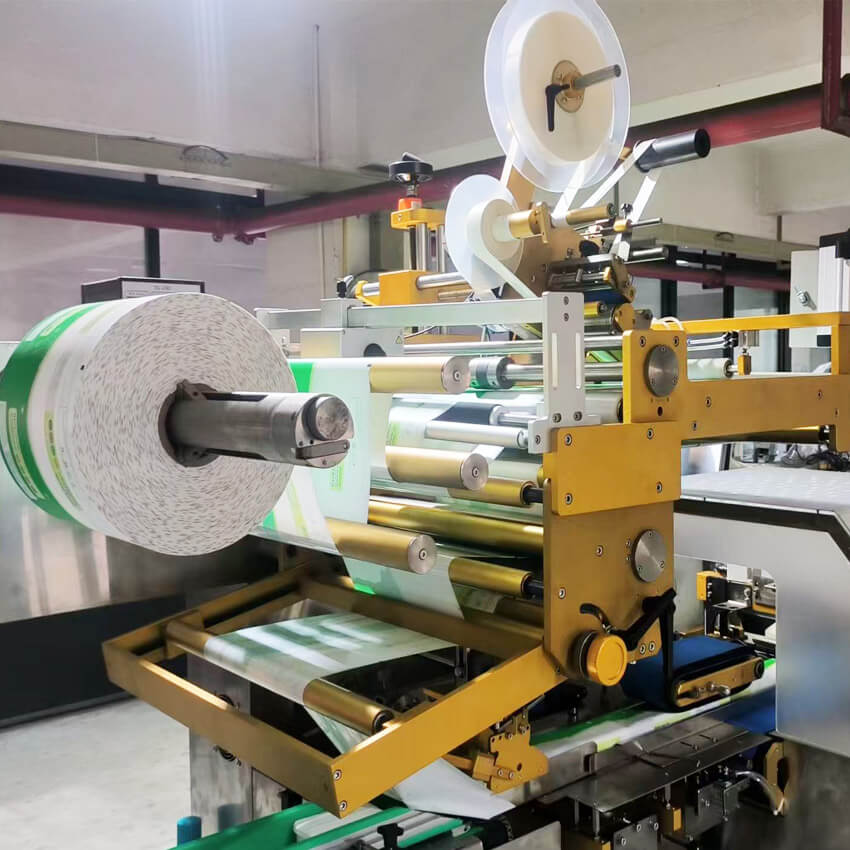

Raw Nonwoven Unwinding→ Automatic Slitting (5 / 6 / 10 / 12 lanes optional)→ Wet Wipes Folding→ Servo Feeding & Traction→ Precise Liquid Dosing / Moisturizing→ Automatic Cutting→ Counting & Stacking→ Synchronous Conveying→ Automatic Soft Pack Packaging→ Packaging Film Unwinding→ Auto Punching Hole
→ Automatic Labeling→ Date / Batch Number Printing (Inkjet/Laser optional)→ Vertical + Horizontal Heat Sealing→ Air Exhaust System→ Finished Pack Output→ Conveyor Transfer→ Automatic Plastic Lid Applicating
From raw material to finished wet wipes packs — one fully automated line.
| Model | JBK-2000 |
|---|---|
| Fabric Material | Spunlace non-woven fabric 30-90gsm, |
| Fabric Material Roll Size | Max Width :1300mm Diameter: 1200mm (special size could be customized) |
| Folding Type | Z, V |
| Speed | 1800-2100pcs/minute for 6 lane wet wipes machine |
| Bag Size | L:100-500mm, W:80-180mm, H:20-120mm |
| Packing Plastic Film | OPP/PE, PET/PE,OPP Film, Aluminum Laminated Film, Pure Aluminum Film, and other composite films |
| Wet Wipes Size | L:100-200mm W:150-220mm(special size could be customized) |
| Wet Wipes Folding Size | L:100-200mm W:80-120mm (special size could be customized) |
| Exhaust | With Air Exhaust |
| Powder | 16KW (Without Automatic Lid Applicator) |
| Weight | 4500kgs(without lid machine) 6500kgs(with lid machine) |
| Layout Size | 14329x3000x2250mm (without lid machine) |
Equipped with 18 full servo motors combined with PLC frequency conversion control, delivering:
✔ High-speed synchronization✔ Accurate positioning✔ Stable continuous running✔ Fast product changeover✔ Lower maintenance requirements
Large-size color touch screen with advanced human-machine interface provides:
✔ Simple operation✔ Real-time production monitoring✔ Quick parameter adjustment✔ Intelligent fault diagnosis✔ Multiple language options
Movable slitting knife design allows left-right adjustment, making the machine suitable for various wipe widths and product specifications.
✔ Pneumatic feeding assistance
This reduces manual labor intensity while improving production efficiency.
Ensuring accurate wipe size control and stable material feeding.
All nonwoven contact parts including folding, spraying, and cutting sections are made of stainless steel, achieving medical-grade cleanliness standards.
Stainless steel liquid circulation system combined with special spray nozzles ensures:
✔ Adjustable liquid volume ✔ Even liquid distribution
Resulting in strong structure, corrosion resistance, and long service life.
