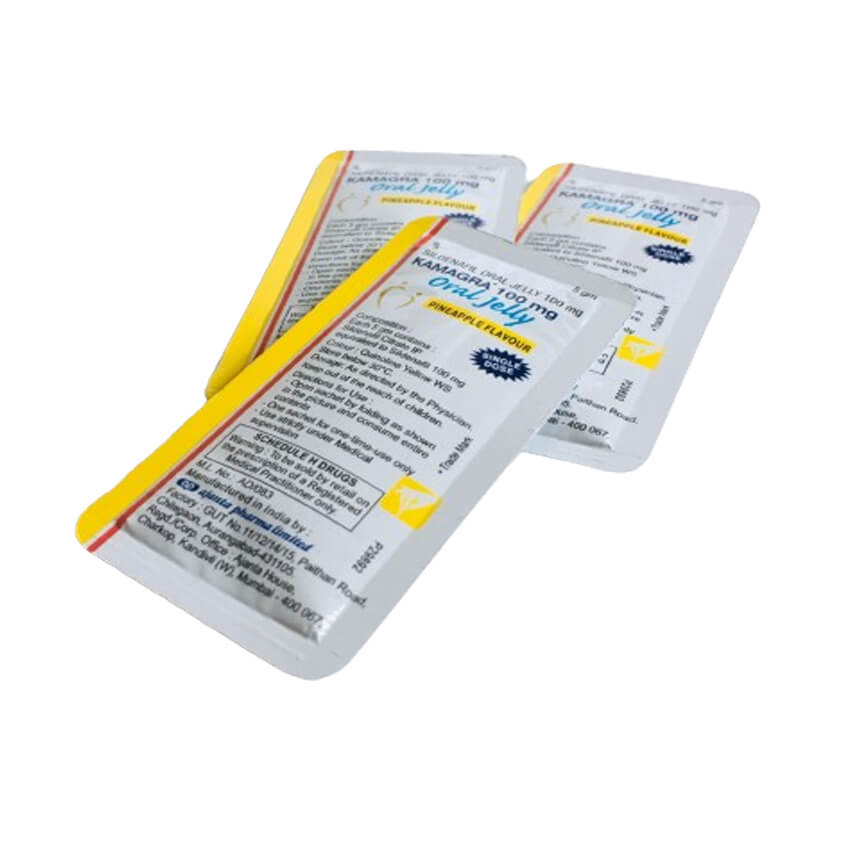

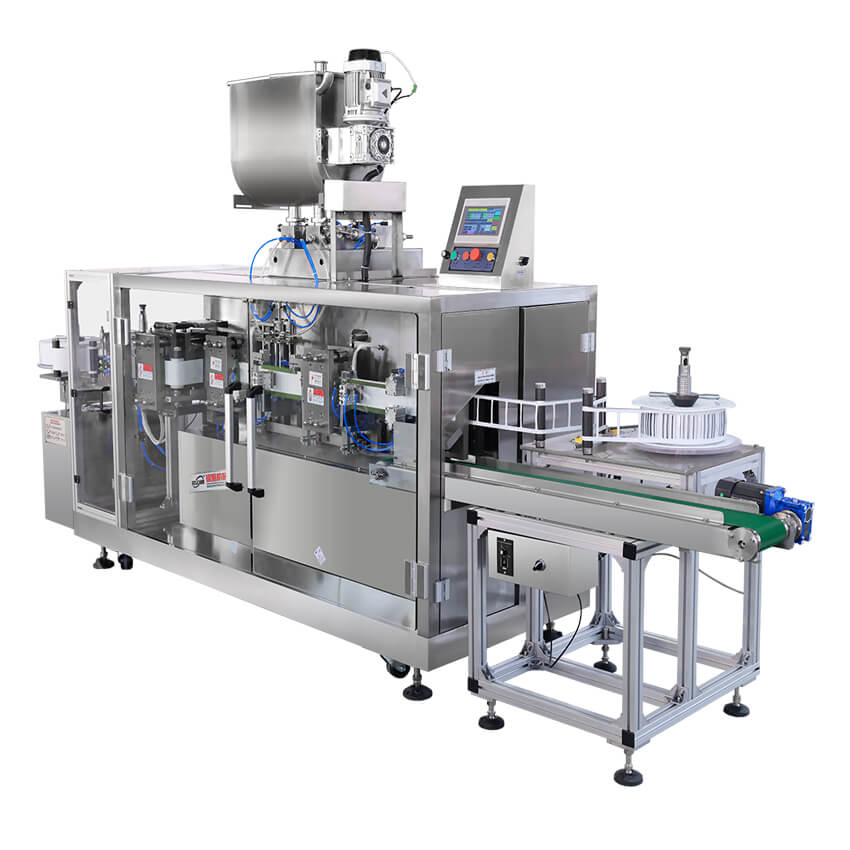

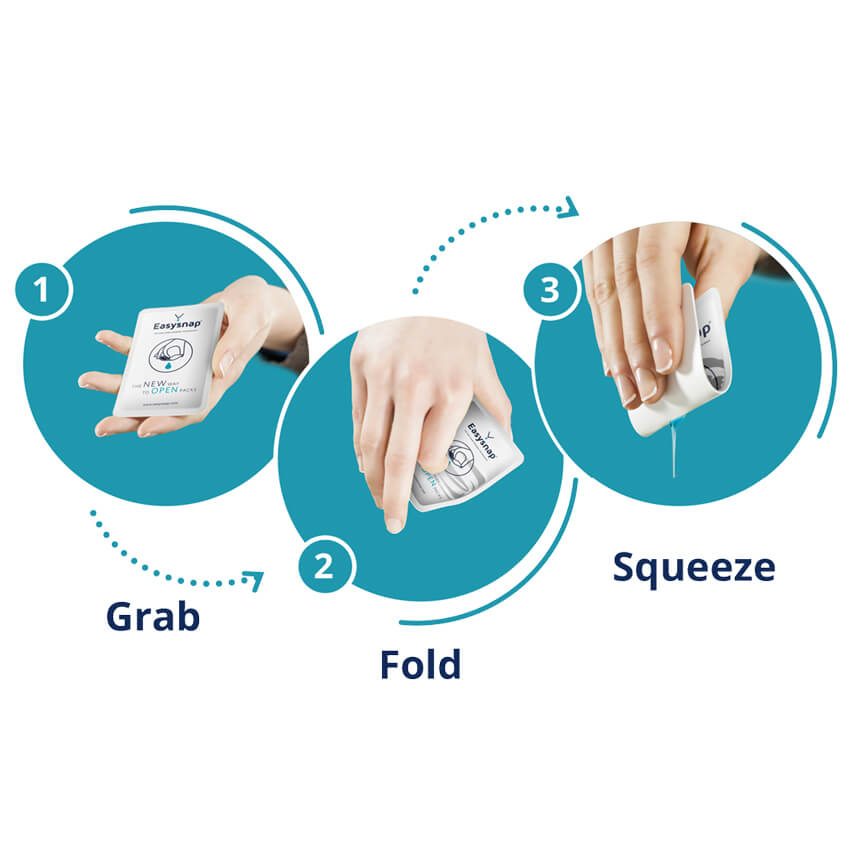

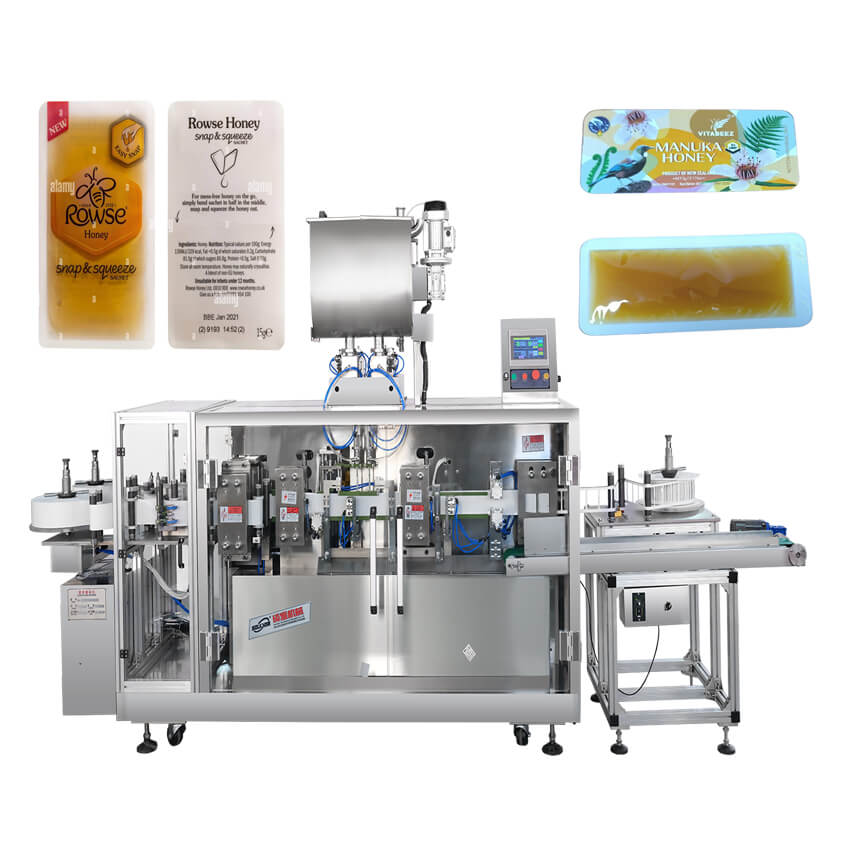

Easy Snap Squeeze Sachet Filling and Sealing Machine

Additional information

Model

GGS-120

Speed

40-80 sachets/minute

Packing Material

Soft film :PET/AL/PET/PE(Thickness:0.1-0.12mm)
Hard film:PET/AL/PS/PE(Thickness:0.45-0.46mm)

Filling Volume

1-20ml

Power

3.2KW 380V

Weight

1000kgs

Overall Dimension

3800x1150x1950mm

Details About Easy Snap Squeeze Sachet Filling and Sealing Machine

Performance and features

1) Adopt PLC control, stepless frequency conversion speed regulation.

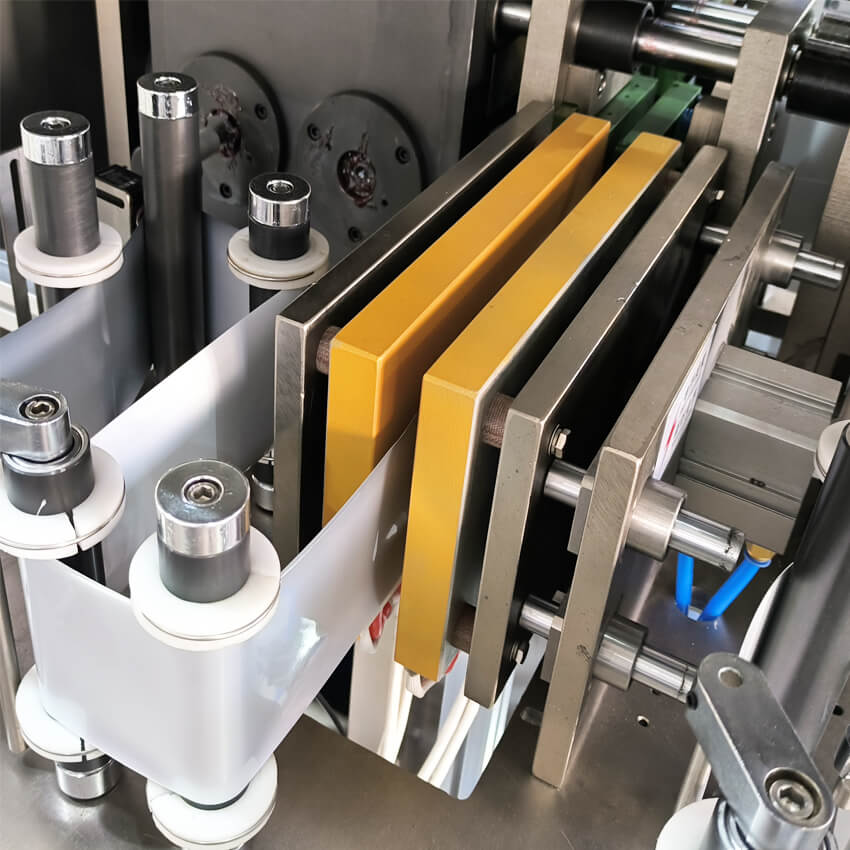

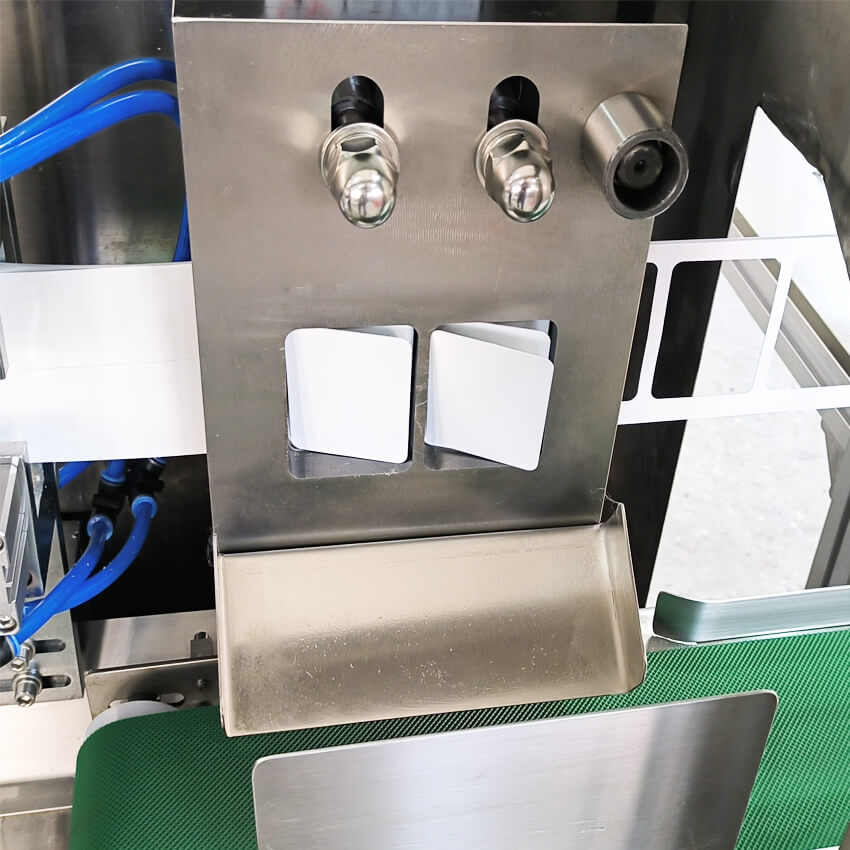

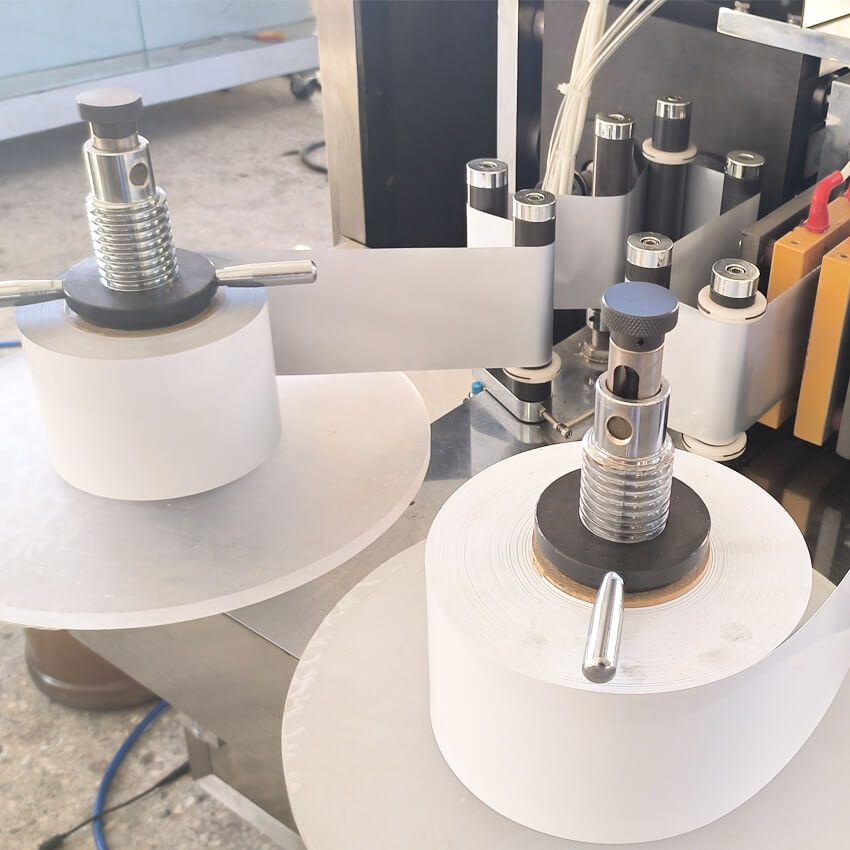

2) Unwinding, forming, creasing, heat sealing, filling, end sealing, punching.

3) Photoelectric pattern alignment function on one side, and printing date 1-5 typesetting on the other side.

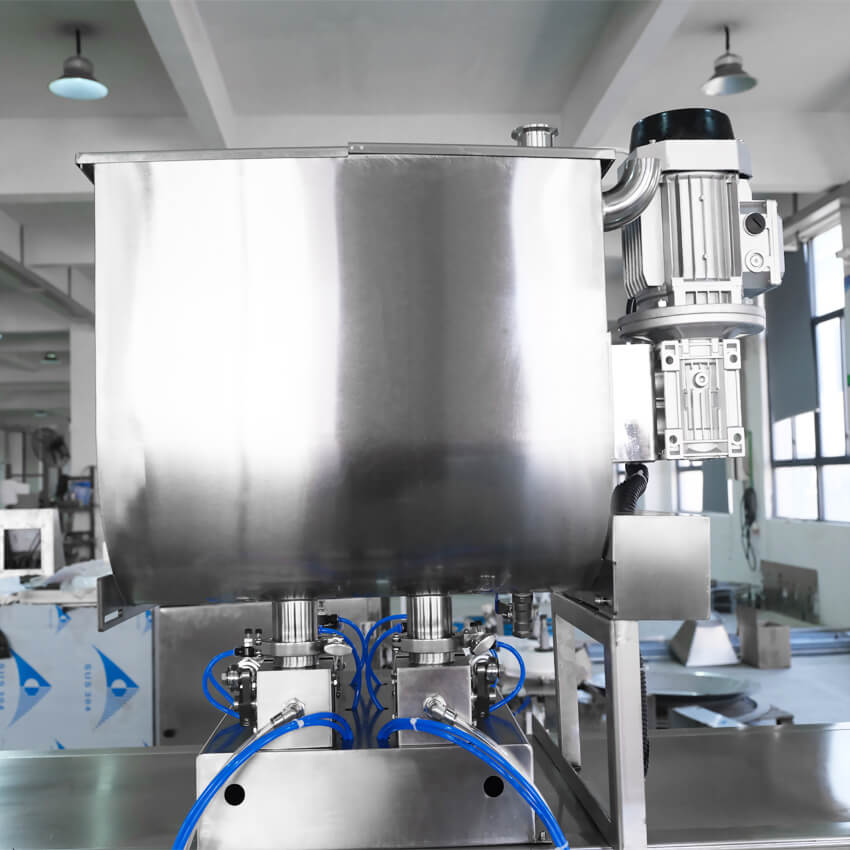

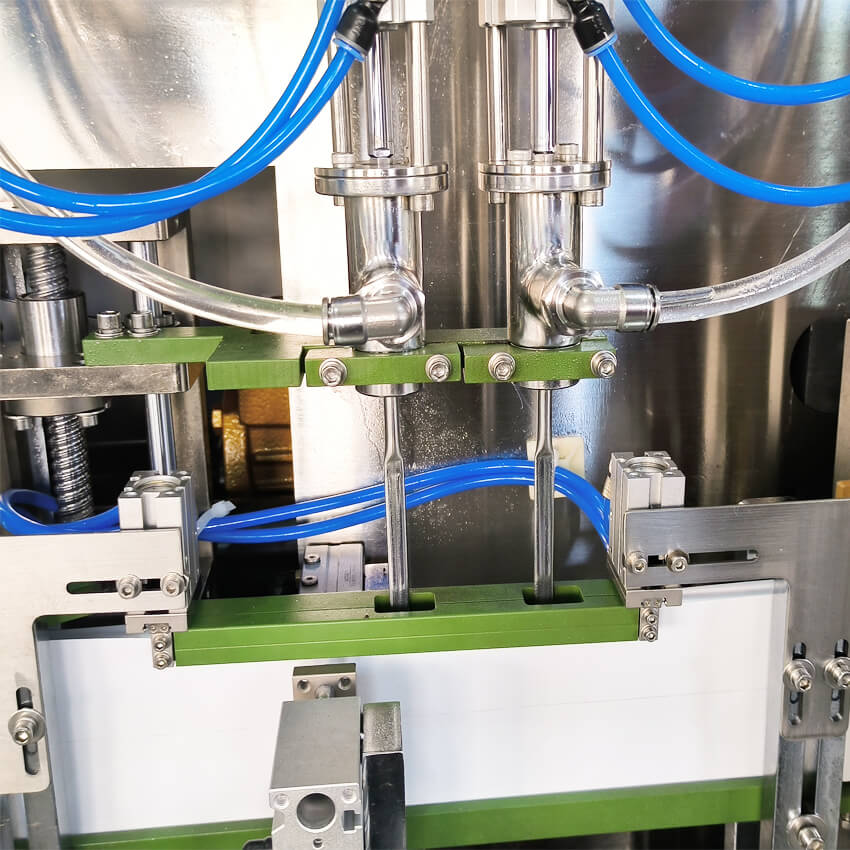

4) Peristaltic pump or piston pump is used to control the filling volume, with accurate accuracy and anti-drip function.

5) The contact part is made of 316L stainless steel, and the outer cover of the machine is made of SUS304 stainless steel, which meets the GMP standard.
