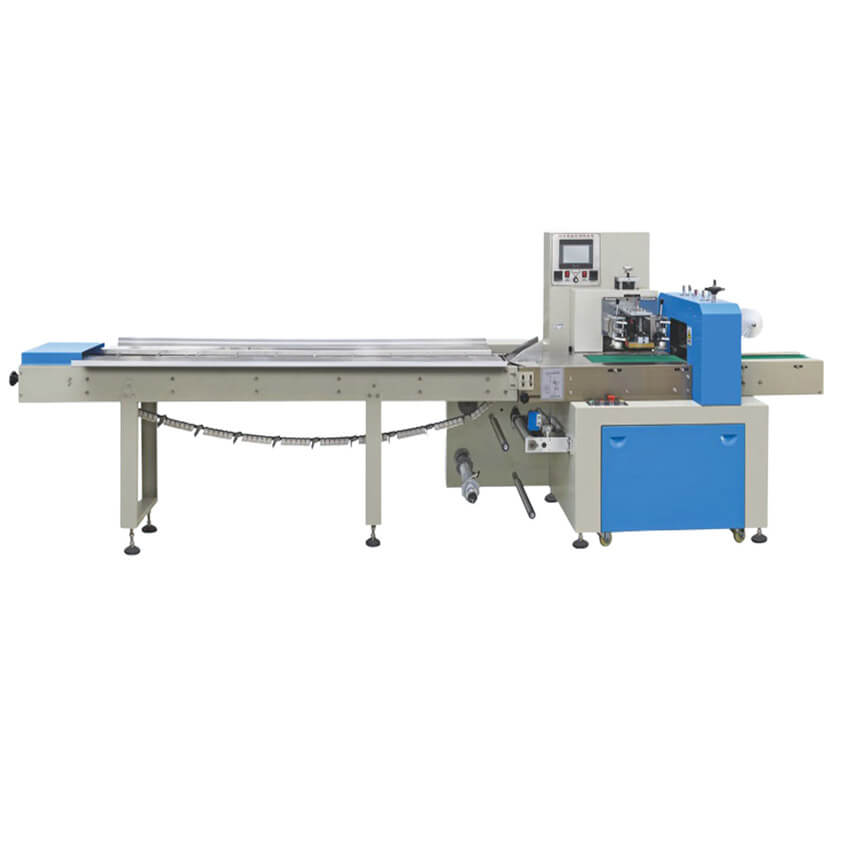

Automatic flow wrapping machine with down side feeding film system for stable and efficient packaging performance. Suitable for food, medical supplies, daily products, and disposable items. Features high-speed operation, precise sealing, and easy adjustment.
Optional:
Air inflation, Pour slot, Printing code, Inkjet Printing, Exhaust.
| Model | KD-260, KD-350, KD-450, KD-590 |
|---|---|
| Product Length | 50-200mm, 60-300mm, 80-400mm, 100-400mm |
| Product Width | 20-100mm, 30-150mm, 50-200mm, 100-250mm |
| Product Height | 1-50mm, 1-50mm(Option:2-80mm), 20-80mm, 20-120mm |
| Intensity of Sealing | >15N/mm² |
| Packing Speed | 40-250 packages/minute |
| Packing Material | BOPP/PE, CPP/PE, CPP/PA, BOPP, CPP Anti-Fog Film, OPP Film, Color Film, and so on. |
| Max Film Width | 240mm, 330mm, 430mm, 580mm |
| Max Packing Capacity | 20-250 times/minute,20-220 times/minute,20-200 times/minute |
| Thickness of Film | 0.03-0.06mm |
| Power | 220V 50HZ 2.4KW-2.7KW |
| Overall Dimension | 4100x1000x1500mm, 4100x1050x1500mm, 4100x950x1500mm, 5100x1050x1700mm |
| Weight | 550kgs, 600kgs, 680kgs, 800kgs |
1) 3 Servo Intelligent Motion Control
2) Smart PLC + Touch Screen Control
3) Automatic Fault Diagnosis
4) Independent PID Temperature Control
5) High-Precision Eye Mark Tracking
6) No Product — No Bag — No Cutting
7) Film Saving & Cutter Protection
8) Flexible Feeding Solutions
9) No Product Length Limitation
10) Stable Structure, Easy Maintenance
