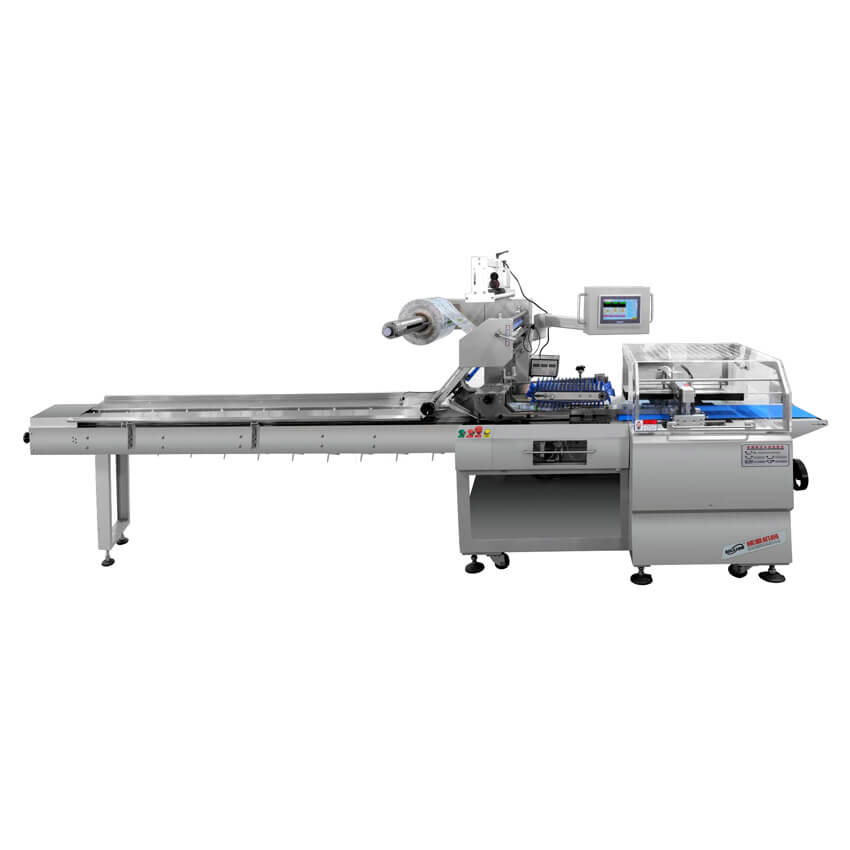

This machine is suitable for packaging large-sized chocolates, bread, large and small packages of shachima, large and small packages of vegetables, corn and other large-sized products.
Model | KD-600 |
---|---|
Packing Speed | 40-80 packages/minute |
Plastic Film Width | 300-600mm |
Packing Width | 50-200mm, |
Packing Height | 10-120mm |
Packing Length | 150-450mm |
Packing Material | BOPP/PE, CPP/PE, CPP/PA, BOPP, CPP Anti-Fog Film, OPP Film, Color Film, and so on. |
Thickness of Film | 0.02-0.09mm |
Power | 380V 50HZ 10KW |
Overall Dimension | 4288x1243x1510mm |
Weight | 1200kgs |
1. Fully automatic product packaging, induction start, no material stop. No empty bag phenomenon, material position offset, misaligned end seal, no material cutting.
2. Imported servo motor and controller are used, quality is guaranteed;
3. The main frame is made of 12mm thick steel plate, and the center of the knife hole is processed by CNC precision machining center. Low noise and very few waste products. The equipment has beautiful appearance and is rust-proof, which improves the equipment grade.
4. The forward and reverse tracking adopted improves the tracking accuracy, ensures the cutting accuracy, and avoids the waste of packaging materials.
5. Product parameter memory function, one-key adjustment of the touch screen when changing different packaging products (convenient and fast, simple and easy for employees to understand).
6. Equipped with a color LCD touch screen, speed, bag length, cutting point position detection, etc. can be directly displayed and operated on the interface, which is more user-friendly;

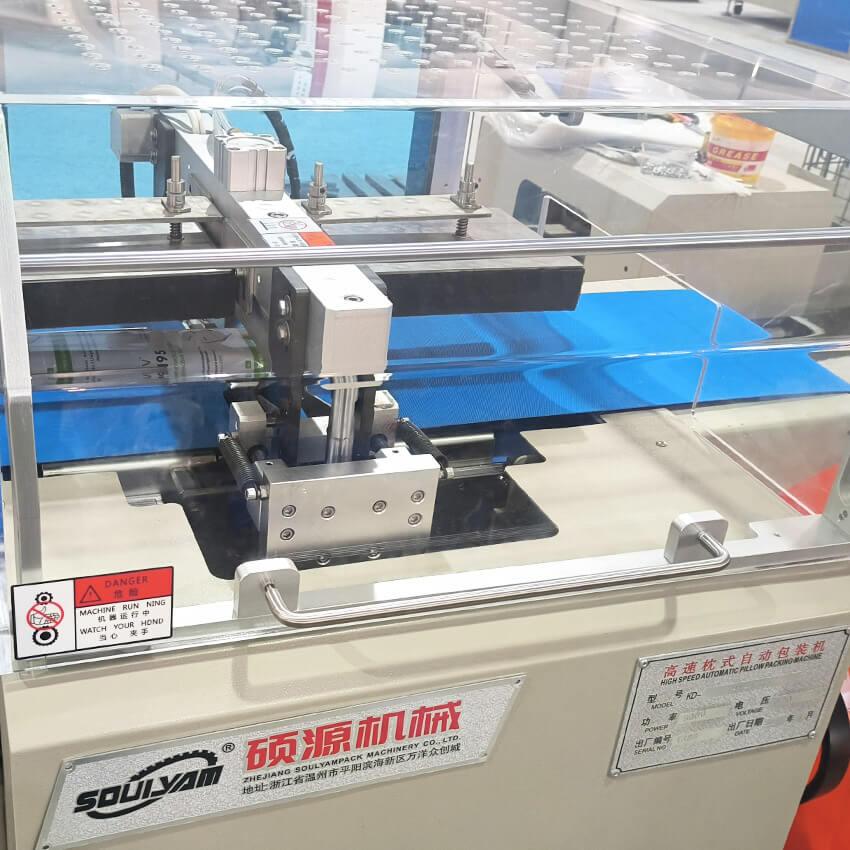

7. Reinforced safety shield and safety warning sign, safer and more reliable to use.
8. Automatically stop when the packaging consumables are used up. The bag length is automatically adjusted according to the product length, and products of different types and sizes can be packaged at the same time. 9. The induction anti-cutting function completely eliminates the cutting phenomenon caused by material misalignment, and the packaging yield is high.
