Full Servo Automatic Wet Wipes Machine(10-120pcs/pack)

Additional information

Model

JBK-2000

Fabric Material

Spunlace non-woven fabric 30-90gsm,
hot air cloth,degradable and flushable composite material, wet strength paper

Fabric Material Roll Size

Max Width :1300mm Diameter: 1200mm (special size could be customized)

Folding Type

Z, V

Speed

1800-2100pcs/minute for 6 lane wet wipes machine
3600-4200pcs/minute for 12 lane wet wipes machine

Bag Size

L:100-500mm, W:80-180mm, H:20-120mm

Packing Plastic Film

OPP/PE, PET/PE,OPP Film, Aluminum Laminated Film, Pure Aluminum Film, and other composite films

Wet Wipes Size

L:100-200mm W:150-220mm(special size could be customized)

Wet Wipes Folding Size

L:100-200mm W:80-120mm (special size could be customized)

Exhaust

With Air Exhaust

Powder

16KW (Without Automatic Lid Applicator)
24KW (With Automatic Lid Applicator)

Weight

4500kgs(without lid machine) 6500kgs(with lid machine)

Layout Size

14329x3000x2250mm (without lid machine)
18640x3000x2250mm (with lid machine)

Details About Full Servo Automatic Wet Wipes Machine(10-120pcs/pack)

10-120 pcs/bag Production flow:

Non-woven automatic unwinding→ Slitting into (5/6 lanes)10/12 lanes → wipes folding→ traction feeding→ quantitative humidification→ cutting→ stacking & counting→ synchronous conveying→ automatic packaging machine→ roll film unwinding→ automatic punching hole-→automatic labeling →automatic date/batch number printing(ink jet printing is optional) →heat sealing and cutting (vertical sealing+ horizontal sealing)→ wipes bag air exhaust→ wipes bag output→ conveyor → lid applicating machine



Features of the machine:

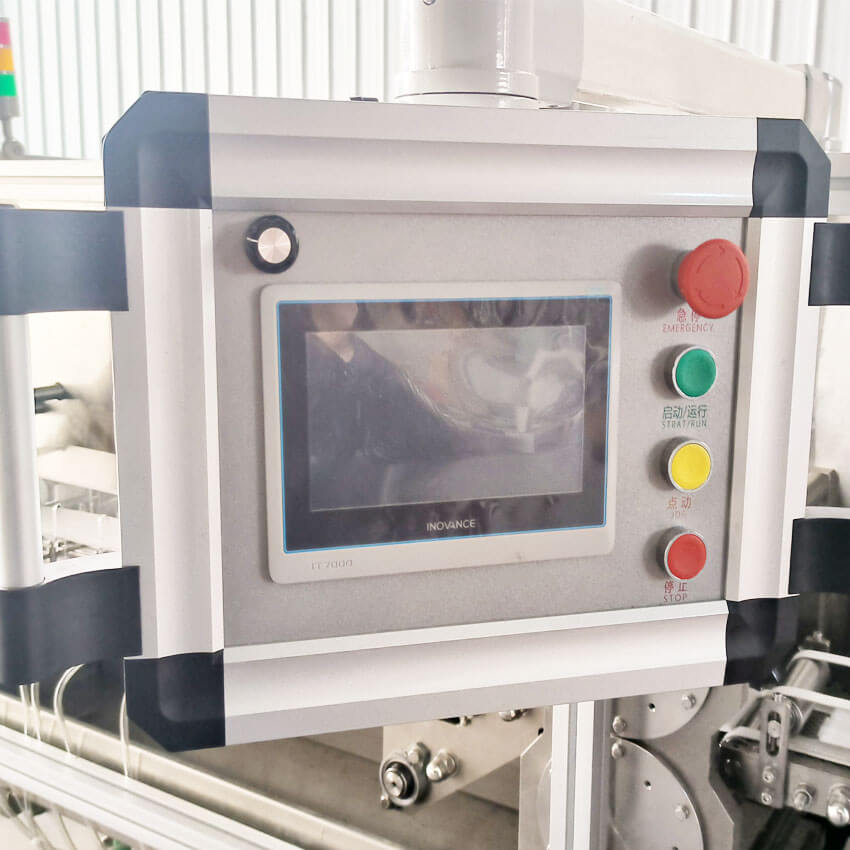

  1. Full Servo control(total 18 sets),PLC frequency conversion program joint control system, equipped with large size color touch screen, intelligent equipment, superior man-machine dialogue performance, simple operation.
  2. Equipped with slitting device, slitting knife can move left and right to adjust product slitting width, suitable for a variety of specifications of product production.
  3. Pneumatic auxiliary feeding, air expansion shaft unwinding, air pressure slitting knife, reduce the intensity of manual labor, save time and effort.
  4. Equipped with tension adjustment control system, can set the appropriate tension according to different materials, to control the product size accurately.
  5. All stainless steel non-woven folding, spraying, slicing mechanism, product cleaning up to medical standards.
  6. Adjustable liquid quantity and quantitative spray system, with stainless steel liquid irrigation and special sprinkler head.
  7. Food grade clean conveyor belt, beautiful and sanitary.
  8. Electrical parts are embedded, line number is clear and tidy, equipped with leakage protection, safer operation.
  9. The steel frame of the whole machine is welded by the national standard high-quality square pipe. It adopts sandblasting treatment and multi-layer anti-rust process and is covered with 304 stainless steel externally.
  10. Electrical components and cylinder guide rail all adopt famous brands, reliable quality, excellent performance.
