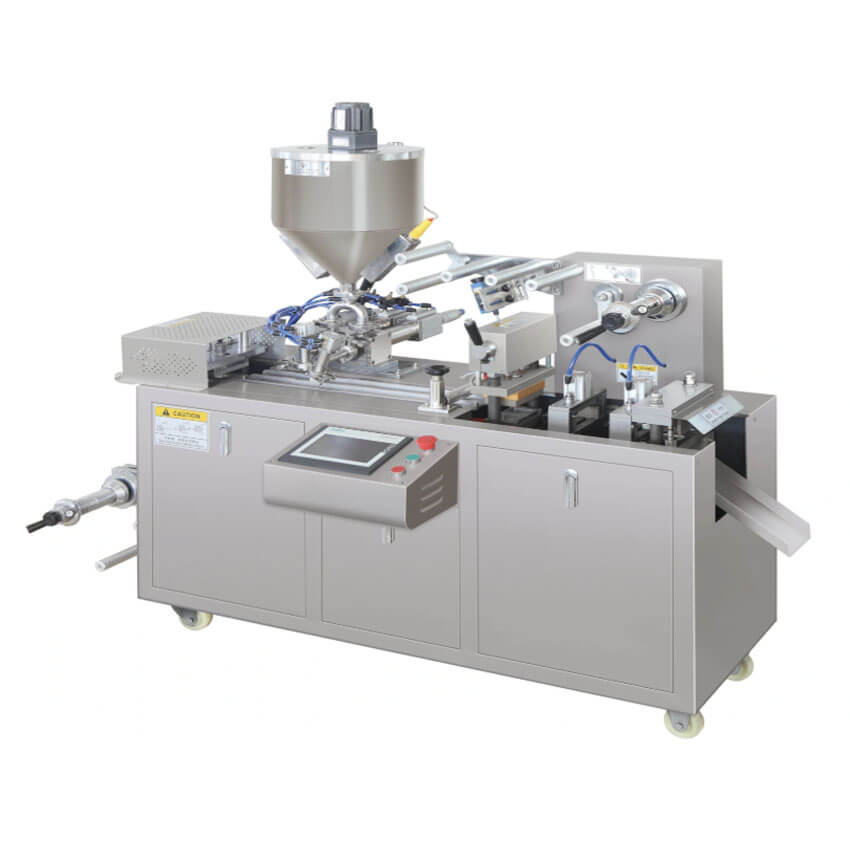

Jam/Liquid Blister Packaging Machine

This machine is the latest and high automation product designed for middle and small-sized pharmacy factory, healthcare factory and preparation-room of the hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter, and touch screen operation. It can automatically finish the process of feeding, forming, heat-sealing, pressing, batch number printing, punching, and so on. It is the ideal packing equipment with convenient operation, full purpose function. The product passed the provincial science and technology appraisal.

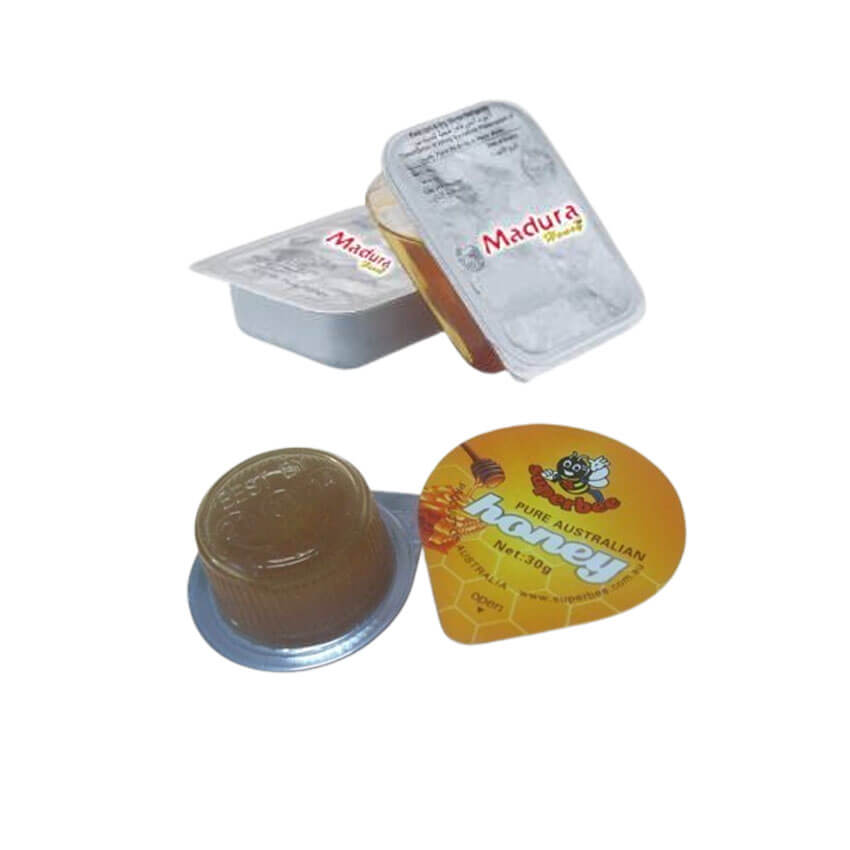

It is suitable for capsules, tablets, honey pills, candy, liquid (ointment), syringes as well as irregular shapes All-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry, etc.

Additional information

Model

DPB

Speed

15-35 times/minute

Max Forming Area

90x110x26mm

PVC/PET Roll

0.15-0.5 ×100mm

Aluminum Foil

0.02-0.035× 100mm

Dialysis Paper

50-100g× 100mm

Mold Cooling

Tap Water Or Circulating Water

Travel Range

20-70mm

Air Supply

≥0.3m3/min

Weight

600KGS

Details About Jam/Liquid Blister Packaging Machine

  1. The newest type of transmission mechanism is adopted where the row chains lead the main drive shaft to avoid the errors and noises caused by other gear transmission mechanism.
  2. The electrical appliances of this machine adopted imported control system. As per the customer’s requirements, it can be optionally equipped with feeding device for missed material, and detection & rejection device (Omron Sensor) for waste product (lack of material).

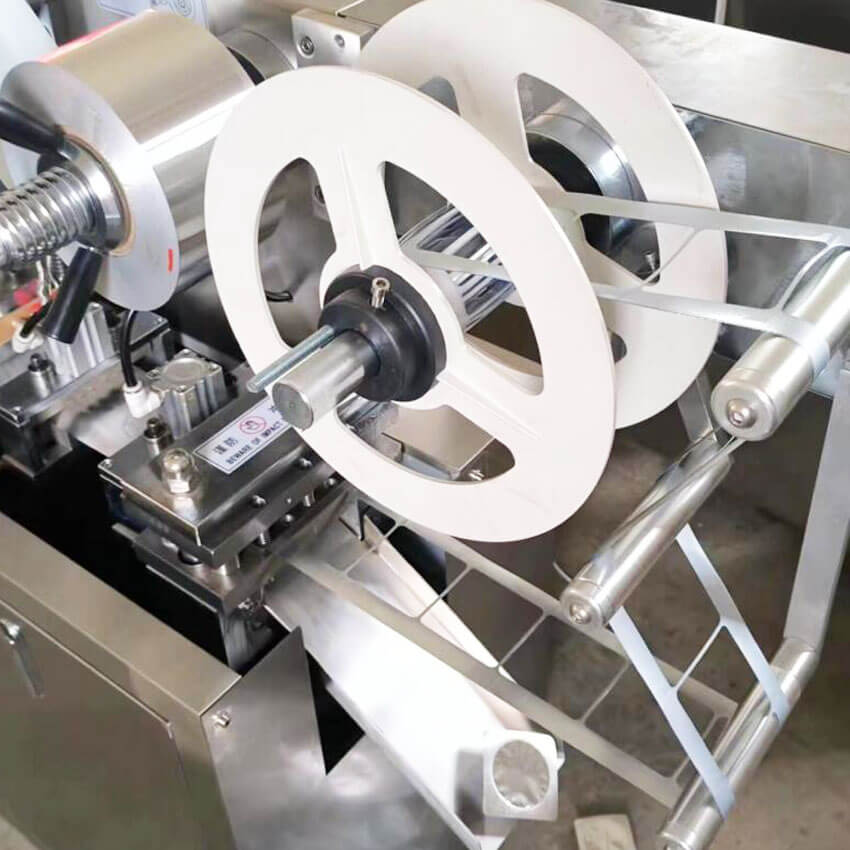

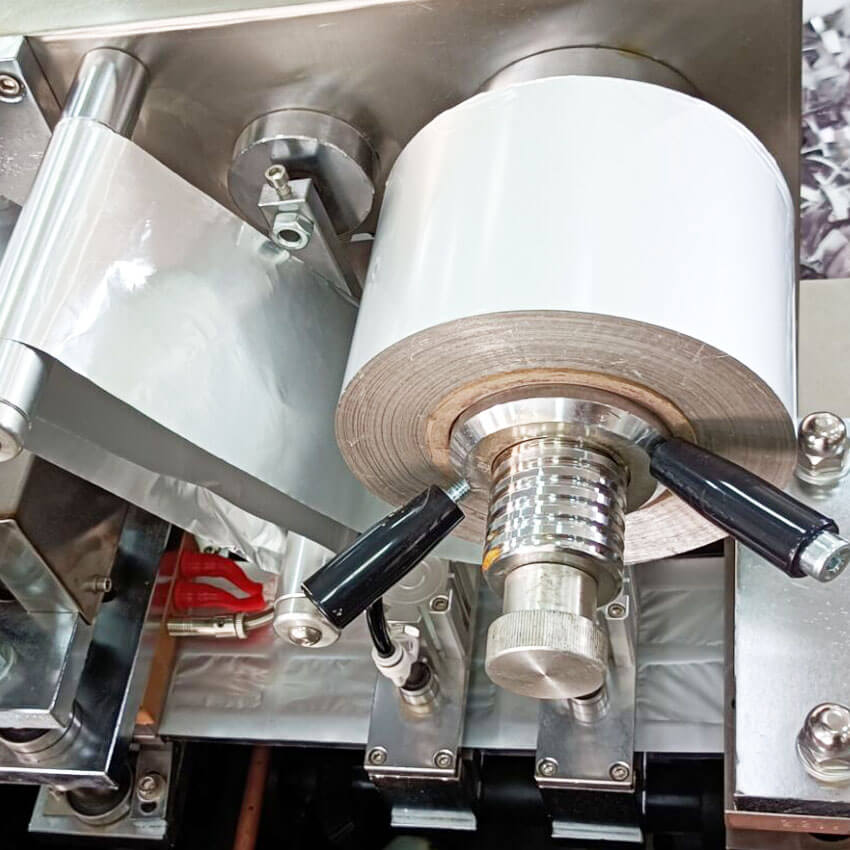

  3. It adopts photoelectric control system and PVC/ PTP/Alu foil auto feeding device, and hard aluminum automatic feeding and waste packing auto-cutting device to ensure the stability of multi-stations at overlong distance.

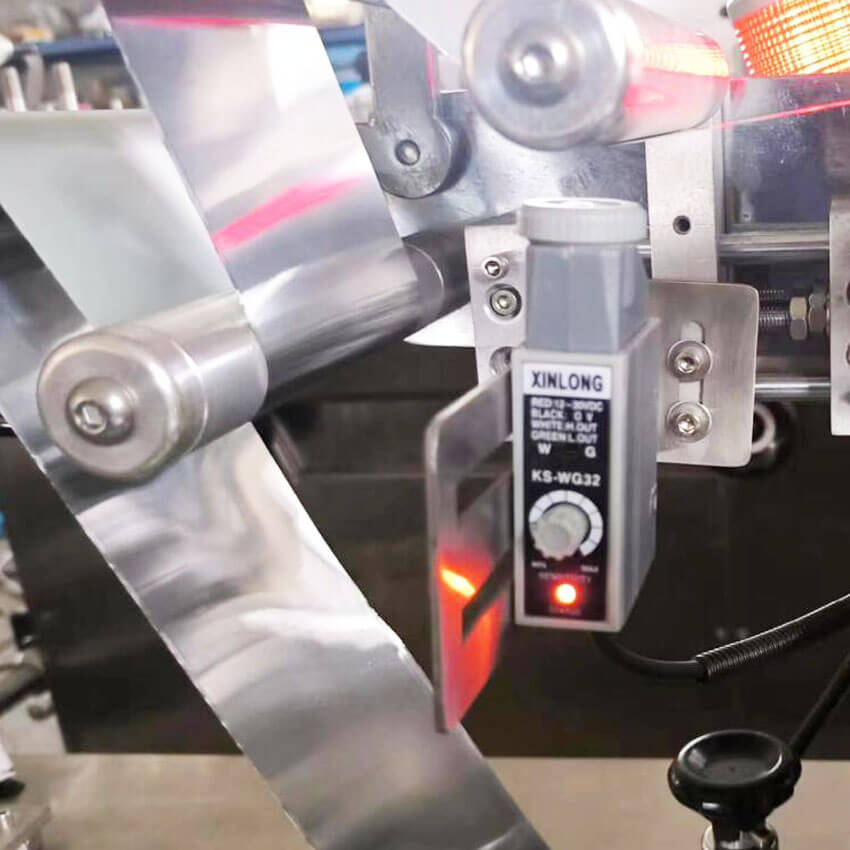

  4. Photoelectric detection and correction device and imported stepper traction motor. As with image-mark printing, the package grade can be optimized.
  5. This machine is suitable for the blister packing in food, pharmaceutical, medical instrument, hardware and electronic industries.
